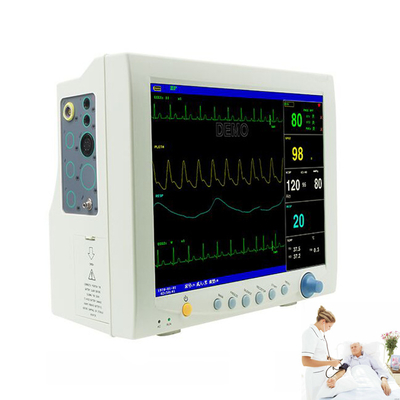

12.1" CE Multi portable parameter Portable Patient Monitor
Features
12.1"High brightnees TFT LCD display
Portable ,streamline handle design
Big figure display
ECG Waveforms of 7-lead displayed in one screen
96-hour tabular and graphic trends & date storage
Compatible and self identify 3-lead and 5-lead ECG cable
NIBP dual Over Pressure Protection
Isolated floating,anti defibrillation protected and anti high-frequency interference
Standard parameter & configuration
3/5 lead ECG,RESP,SpO2,NIMP,TEMP,PR,Network
Optional parameter & configuratio
2-IBP,Recorder,12 lead ECG,ETCO2
Standard parameter & configuration
3/5 lead ECG,RESP,SpO2,NIMP,TEMP,PR,Network
Optional parameter & configuration
IBP,Recorder,12 lead ECG,ETCO2
Configuration:
|
Item |
No. |
Contents |
Qty |
Remark |
|
Standard Configuration |
1 |
Main Unit |
1 |
|
|
2 |
Power Cable |
1 |
|
|
|
3 |
ECG Cable |
1 |
|
|
|
4 |
ECG Electrodes |
20 |
|
|
|
5 |
SPO2 Finger Sensor |
1 |
|
|
|
6 |
NIBP tube |
1 |
|
|
|
7 |
Adult Cuff |
1 |
|
|
|
8 |
User Manual |
1 |
|
|
|
9 |
Adaptor |
1 |
|
|
|
10 |
TEMP Sensor |
1 |
|
|
|
Packing |
Size: 460mmX390mmX350mm Weight: 7.5KG |
|||
Multi-parameter Patient Monitor series: $150-600
| Model | Parameters | Parameters(detail) |
Screen size |
Touch screen |
Central Monitoring |
WIFI/ Cellular |
Printer |
| PM50 | 2 | NIBP/SPO2 | 2.4 | N | N | N | N |
| CMS5000 | 2 | NIBP/SPO2 | 2.4 | N | N | N | N |
| CMS5000C | 2 | NIBP/SPO2 | 2.4 | N | N | N | Y |
| CMS5100 | 3 | NIBP/SPO2/TEMP | 2.8 | N | N | N | N |
| CMS6500 | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 7 | Y | Y | Y | Y |
| CMS6000 | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 8 | N | Y | Y | Y |
| CMS7000 | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 12.1 | N | Y | Y | Y |
| CMS7000 PLUS | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 12.1 | Y | Y | Y | Y |
| CMS8000 | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 12.1 | N | Y | Y | Y |
| CMS9000 | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 12.1 | N | Y | Y | Y |
| CMS6800 | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 8 | N | Y | Y | Y |
| CMS9200 | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 15 | N | Y | Y | Y |
| CMS9200 PLUS | 6 | NIBP/SPO2/TEMP/ECG/RESP/PR | 15 | Y | Y | Y | Y |
| HMS6500 | 9 | NIBP/SPO2/TEMP/ECG/RESP/PR | 7 | Y | N | Y | N |
| HMS7500 | 9 | NIBP/SPO2/TEMP/ECG/RESP/PR | 10.1 | Y | N | Y | N |
|
For model CMS6000/6500/6800/7000/7000 PLUS/8000/9000/9200/9200 PLUS, optional functions are: IBP, ETCO2, 12 LEAD ECG, BUILT-IN PRINTER, VGA OUTPUT, CO, MOVING BRACKET,HANGING BRACKET. |
|||||||
